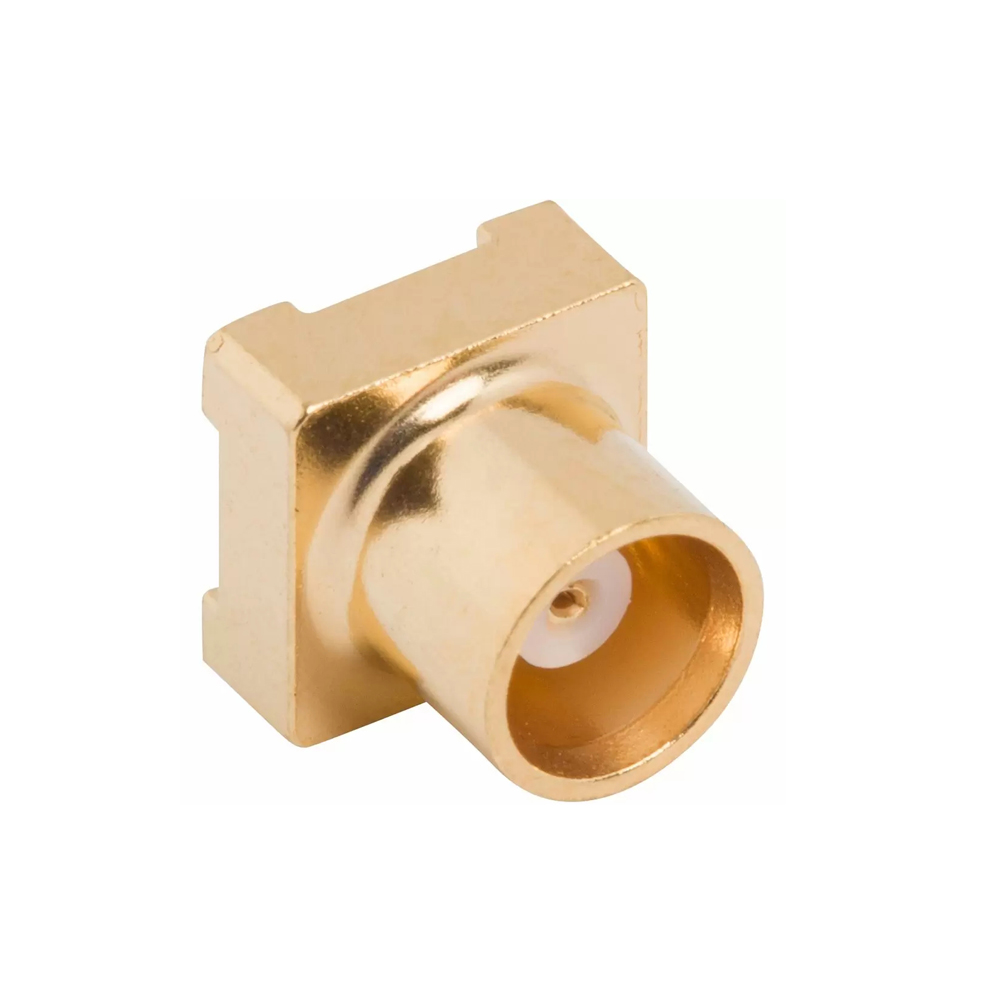

| Name | Connector |
| Series | MCX |
| Gender | Jack |
| Orientation | Straight |
| Impedance | 50 Ohm |
| Frequency Range(max) | 2 GHz |
| VSWR | ≤1.20/1Ghz |
| Working Voltage | 250 Volts RMS Continuous |
| Insulation Resistance | 1000 MΩ Min |
| Center Contact Resistance | 5.0 mΩ Max |
| Outer Contact Resistance | 2.5 mΩ Max |
| Thermal Shock | MIL-STD-202, Method 107 (Test Condition B) except high temp test @ +200°C |
| Operating Temperature | −55°C to +155°C |
| Corrosion | MIL-STD-202, Method 101 (Test Condition B) - 5% Salt Solution |
| Mechanical Shock | MIL-STD-202, Method 213, Snap-On (Test Condition B) |
| Vibration |
MIL-STD-202, Method 213, Snap-On (Test Condition B) |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Durability | 500 Min |
